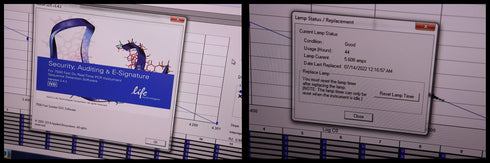

✅ This is an Applied Biosystems 7500 Fast DX Real-Time PCR system that has been fully calibrated and performance tested. It has a Standard Curve R2 value of 0.99 on the standard curve performance assay. The system is ready to run tests and performs according to manufacturer standards. The lamp has only been used for 44 hours, so it is still new.
Calibrations performed:
ROI Calibration
Background
Optical Calibration
Spectral Dye Calibrations: FAM, SYBR Green I, VIC, JOE, NED, TAMRA, and ROX
Product Specsheet
PDF Applied Biosystems ABI 7500 Fast DX Real Time PCR System
PDF, 3 MB
| Format | 96 |
| Sample Ramp Rate | Fast Mode: ± 2.2°C⁄s, Standard mode: ± 1.6°C⁄s |
| Temperature Range (Metric) | 4.0 to 99.9°C |
| Passive Reference Dye | ROX (Separate Tube), Other Passive Reference Dye, ROX (Pre |
| Reaction Speed | Fast, Standard |
| Run Time | 36 min. (Fast), <2 hrs (Standard) |
| Thermal Cycling System | Peltier |
| Capacity | 12 x 8 |
| Precision | Distinguish between 5000 to 10,000 genome equivalents (two |
| Max. Heating Rate (Thermal Block) | 5.5°C |
| Thermal Accuracy | ±0.5°C |
| Sensitivity | Down to 1 Copy of Human RNAse P gene |
| Reaction Volume Range | 10 |
| Dynamic Range | 9 Logs of Linear Dynamic Range |
| Calibrated Dye | TAMRA, Cy3, FAM, SYBR Green, Texas Red, JOE, ROX, Cy5, NED, VIC |
| Thermal Uniformity | ±1°C |
| Throughput | 4 to 5 96 |
| Optics | CCD Camera, Halogen Light Source, Five Excitation and Five Emission Filters |
| Dimensions | 34 cm (13.39 in.) (W) x 49 cm (19.29 in.) (H) x 45 cm (17.72 in.) (D) |
| Peak Block Ramp Rate | 5.5°C⁄s |
| Weight | 34 kg (75 lb.) |
Included with Applied Biosystems ABI 7500 Fast DX Real Time PCR System

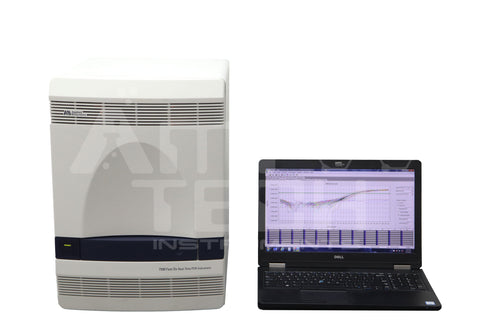

- Applied Biosystems 7500 Fast DX Real-Time PCR system
- Laptop with 7500 FAST
- System SDS Software v1.4.1
- All Power and Communication Cables
Disclaimer: Unless otherwise stated the seller is not authorized by or associated with the original equipment manufacturer. This product has not been reviewed by the manufacturer to reverify its quality or compatibility with its other products.
